Pneumercator was established in 1914 and began manufacturing column type mercury gauges for marine and industrial use. With over 100 years of experience, we are the industry-preferred automatic tank gauge for industrial, commercial, and mission critical applications. Customer statements reflect our dedication to quality and customer service when they say we are reliable, flexible and provide a high quality product at an affordable price.
Pneumercator is derived from PNEUmatic MERcury indiCATOR. Our name has been on liquid level gauges from the Panama Canal to tanks that fuel Air Force One.
Manufacture high quality, affordable products that allow our customers to comply with environmental regulations
Pneumercator has an in-depth understanding of industry regulations. Our engineering, technical support, manufacturing and sales teams have over 200 years of combined industry experience.
Whether it's NEMA 4X and 7 enclosures for tank monitor systems or tamper-proof leak sensors, Pneumercator leads the way in providing innovative solutions.
Cost Effective Solutions
Pneumercator provides engineered, cost-effective solutions for your site including free phone support for the life of the product. Don't have a tech number? Don't worry we have you covered.
Automatic Tank Gauges
|Hardwired Console Image
[click image for details]
|Hardwired Console P/N||TMS4000||TMS3000||TMS2000||TMS1000|
|Interface||10.4" Touch Screen||Super-Bright LED Display Push-button or TMSComm programming||Super-Bright LED Display Push-button or TMSComm programming||Super-Bright LED Display Push-button or TMSComm programming|
|Standard Probe Inputs||4||4||2||1|
|Maximum # of Probes||48||12||2||1|
|Standard Sensor Inputs||8||8||8||2|
|Maximum # of Sensors||48||40||8||2|
|Probe/Sensor Card Expansion||3 Slots||3 Slots||N/A||N/A|
|NEMA 12 Indoor||Standard||Standard||Standard||N/A|
|NEMA 4 Outdoor||N/A||Optional||Optional||N/A|
|NEMA 4X Corrosion-Protection||Optional||Optional||Optional||Standard|
|NEMA 7 Explosion-Proof||N/A||Optional||Optional||N/A|
|RS-232 Ports Standard||2||2*||1||1|
|RS-232 Ports Optional||2||2||2||2|
|RS-485 Ports Standard||1||1||1||0|
|USB Port||1 Internal Standard
1 External Optional
|ModBus||Optional (1-4 Ch.)||Optional (1-4 Ch.)||Optional (1-2 Ch.)||Optional (1-2 Ch.)|
|Internal Cellular Modem||Optional||N/A||N/A||N/A|
|PCO Cloudview Support||Standard||N/A||N/A||N/A|
* 2 RS-232 Ports when configured without printer or modem
Multi-Tank Gauging System, up to 12 Probes/40 Leak Sensors with Wireless Radio and Antenna
Multi-Tank Gauging System, up to 32 Probes/128 Leak Sensors with Wireless Radio and Antenna
Wireless Data Acquisition Module with 76AH battery pack & NEMA 4X enclosure; Each WiDAM supports 1 probe & up to 4 sensors.
Use with TMS2000W & TMS4000W
900 MHz Wireless Repeater to extend WiDAM or ETD1000W/RA400W Communications Range, NEMA 4X Enclosure, AC Powered
[click image for details]
|Hardwired Console P/N||ES825-100F||ES825-200F||LS600LD||LS600LDBN-2||LS610||RSU800-2||HS100ND||HS100D2|
|Wireless Console P/N||ES825-300FL||ES825-400FL||LS600LD||LS600LDBN-2||LS610||RSU800-2||HS100NDL|
|Detection Method||Electro-Optic||Electro-Optic Conductive||Float||Float||Float||Float||Polymer||Polymer/Float|
|Tank Interstitial - Dry||X||X||X||X||X|
|Tank Interstitial - Wet||X|
|Wet Well Monitoring||X|
1, 2, 3 or 4-Input Secondary Containment Leak/Point-Level Audible/Visual Alarm Console
1, 2, 3 or 4-Input Secondary Containment Leak/Point-Level Audible/Visual Alarm Console with Explosion-Proof Enclosure
4, 8, 12 or 16-Input Discriminating/Non-Discriminating Secondary Containment Leak/Point Level Alarm Console with Printer Option
Automatic Pump Controller with Manual Override, Emergency Stop & Two Pump control inputs
Use with LS600-2
Automatic Pump Controller with Manual Override, Emergency Stop, Two Pump control inputs & One Critical Low Input
Use with LS600-3
Automatic Pump Controller with Manual Override, Emergency Stop, Two Pump control inputs & One Critical High Input
Use with LS600-3
Automatic Pump Controller with Manual Override, Emergency Stop, Two Pump control inputs & Two Critical Inputs
Use with LS600-4

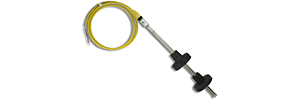

Point Level Sensor to provide overfill protection, high/low alarms, or start/stop for select pump/valve control applications
Point Level Sensor with 4" floats to accommodate more viscous fluids or higher turbulence environments. Stem lengths over 14’ [4.27M] support applications requiring lower activation points.
Point Level Sensor for use with sub-base generator tanks and other shallow tank and small opening applications; Supports tanks with openings less than 1.5” NPT.
Point Level Sensor for Oil Water Separator applications; One or more floats are weighted to sink through petroleum but float on water allowing the monitoring of the Oil/Water Interface.
Point Level Sensor to provide a water tight cable exit to support sensor installation locations, typically a sump or manway, where water ingress is problematic or unavoidable.
Hydrostatic Tank Gauge for Single Tank up to 3000 gallons with 5" Scale Dial Face, Built-in Hand Pump and Indoor or Outdoor Rated Enclosure. Hand Pump Gauges Can Operate up to 150' from tank.
Hydrostatic Tank Gauge for Single Tank 3000 gallons and higher with 14" Scale Dial Face, Built-in Hand Pump and Indoor or Outdoor Rated Enclosure. Hand Pump Gauges Can Operate up to 150' from tank.
Hydrostatic Tank Gauge for Single Tank up to 3000 gallons with 5" Scale Dial Face, and Indoor or Outdoor Rated Enclosure. Requires Constant Air Input and Gauges Can Operate up to 1000' from tank.
Hydrostatic Tank Gauge for Single Tank 3000 gallons and higher with 14" Scale Dial Face, and Indoor or Outdoor Rated Enclosure. Requires Constant Air Input and Gauges Can Operate up to 1000' from tank.
The PD Series offers additional protection to intrinsically safe circuits from damage due to power surge and lightning activity. The unit requires no external power.
Pneumercator offers free phone support for the life of your product. This includes installation, programming, and troubleshooting. For assistance or technical training dates, call us at (631) 293-8450 or email firstname.lastname@example.org
