Features

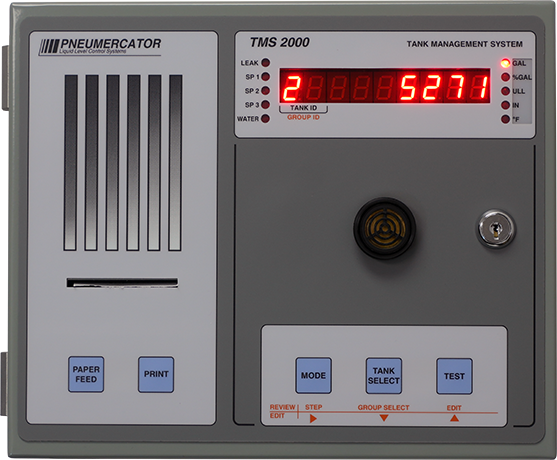

A truly low cost, high performance solution designed to meet all of your environmental compliance and inventory management needs. The TMS2000 is available for both indoor and outdoor use without requiring a secondary enclosure, supplemental heating or cooling. Outdoor enclosure options include NEMA 4, NEMA 4X Stainless Steel and NEMA 7 Explosion-Proof.

Super Bright LED Display, Readable From 25 Feet (6.3 m)

Displays Gross Volume, Net Volume, Ullage, Product Height, Percent Volume, Water Height and Temperature for each tank

Support for 2 magnetostrictive level probes

Support for 8 leak sensors

In-Tank Leak Testing: 0.1 GPH precision & 0.2 GPH monthly testing with as little as 20% tank capacity

Theft Detect feature detects loss of product and is enabled individually per tank

Supports Electronic Line Leak Sensors providing 3GPH catastrophic line leak detection - No Additional Software Needed

Field Upgradeable Firmware supports either US or Metric Units of Measure

Optional Internal Impact Printer

Back-up generator and oil/water separator applications supported

All models include 2 Probe and 8 Leak/Point Level Sensor Inputs, 2 Programmable Relay Outputs and Contact Closure Inputs, RS485 and RS232 Serial Ports.

The TMS2000 is UL/cUL approved, Third-party approved, NWGLDE-listed. Pneumercator has Florida EQ numbers and California Water Board approvals.

Dimensions (W x H x D): 11.8" x 11.5" x 4.75" (363mm x 300mm x200mm)

Weight: 14 lb (6.4 kg)

Operating Tempertature without Printer: -40°F to 160°F (-40°C to 70°C)

Operating Tempertature with Printer:-5°F to 140°F (-20°C to670°C)

Humidity: 95% Non-Condensing

Enclosure Rating: Locking NEMA 12 (IP52), NEMA 4 (IP56), NEMA 4X 304SS (IP56) or NEMA 7 Explosion-Proof

Enclosure Mount Options: Wall-Mount (Standard) or Panel-Mount (Optional)

Power Requirements: 115/230 VAC +/-15% (w/o printer) Switchable, 50-60 Hz,
20 W Max. 8-16 VDC or 16-60 VDC Optional

Memory: Configuration/Setup Data - EEPROM, 50 year data retention, no batteries
Log Reports and Real-Time Clock - Lithium Battery-Backed RAM, 5-10 year data retention

Audible Alarm: 85 db

Display: 9-Character, Super-Bright Sunlight-Readable LED Data Display, Readable from 25’(7.6 m) Ultra-High Intensity Alarm LEDS, Visible from 75’(22.9 m)

Communication: (1) RS-232, (1) RS-485 for Pneumercator Peripherals

Optional Communication: Internal, Secured Modem, Fax/Modem, Network Interface (Ethernet and RS232/RS485 Serial Interface) or ModBus

Probe/Sensor Capacities: 2 Probe Inputs & 8 Sensor Inputs Available;
All Sensor Inputs Supervised-Wiring-Ready

Standard I/O, Non-Hazardous: 2 Relays, 1 Form C, Rated 10A@120 VAC, 6A@240 VAC, w/ 2 Opto-Isolated Inputs

Optional I/O, Non-Hazardous: (1) Expansion Slot Available
4 Relays,1 Form C, Rated 10A@120 VAC, 6A @ 240 VAC, w/4 Opto-Isolated Inputs
8 Relays,1 Form A, Rated 5A@120 VAC, 5A @ 240 VAC, w/8 Opto-Isolated Inputs
16 Relays,1 Form A, Rated 5A@120 VAC, 5A @ 240 VAC
6 or 12 Channel Programmable Analog Outputs

Full spec sheet is included with TMS2000 Downloads.

TMSComm Software

Access Real Time Data

View current tank inventory, alarms and statuses in easy-to-read tabular and/or bar graph formats. Real-time tank data includes Gross Volume, Net Volume (temperature-corrected volume), % Volume, Ullage, Product and Water Level, Volume-weighted Average Product Temperature.

Log Reports

Retrieve historical logs and generate hardcopy reports at the PC. Reports include Inventory, Delivery, Bulk Sales, Thefts, Product Ordering, Water Removal, Alarms, Events, In-Tank Leak Test Results and Leak Test History.

TMSComm AUTOPOLL

AUTOPOLL, an included application with TMSComm, provides an automated polling and data collection process selectable by site and by task that includes e-mail alerts..

Alarm Notifications

Alarms include Product and Water Setpoints, Leak/Point-Level Sensors, Contact Closure Input, Theft, In-Tank Leak and System Errors. Email alerts supported.

Ease of Programming

Perform configuration and setup programming functions either on-line to the TMS2000 or off-line to a file for later upload
