Features

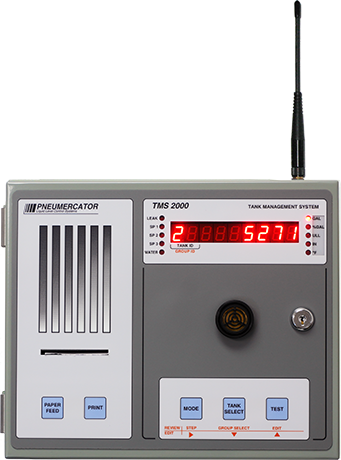

A truly low cost, high performance solution designed to meet all of your environmental compliance and inventory management needs. The TMS2000W is available for both indoor and outdoor use without requiring a secondary enclosure, supplemental heating or cooling. Outdoor enclosure options include NEMA 4, NEMA 4X Stainless Steel and NEMA 7 Explosion-Proof.
Super Bright LED Display, Readable From 25 Feet (6.3 m)
Displays Gross Volume, Net Volume, Ullage, Product Height, Percent Volume, Water Height and Temperature for each tank
Support for 2 magnetostrictive level probes
Support for 8 leak sensors
In-Tank Leak Testing: 0.1 GPH precision & 0.2 GPH monthly testing with as little as 20% tank capacity
Theft Detect feature detects loss of product and is enabled individually per tank
Supports Electronic Line Leak Sensors providing 3GPH catastrophic line leak detection - No Additional Software Needed
Field Upgradeable Firmware supports either US or Metric Units of Measure
Optional Internal Impact Printer
Back-up generator and oil/water separator applications supported
All models include 2 Probe and 8 Leak/Point Level Sensor Inputs, 2 Programmable Relay Outputs and Contact Closure Inputs, RS485 and RS232 Serial Ports.
The TMS2000W is UL/cUL approved, Third-party approved, NWGLDE-listed. Pneumercator has Florida EQ numbers and California Water Board approvals.
Dimensions (W x H x D): 11.8" x 11.5" x 4.75" (363mm x 300mm x200mm)
Weight: 14 lb (6.4 kg)
Operating Tempertature without Printer: -40°F to 160°F (-40°C to 70°C)
Operating Tempertature with Printer:-5°F to 140°F (-20°C to670°C)
Humidity: 95% Non-Condensing
Enclosure Rating: Locking NEMA 12 (IP52), NEMA 4 (IP56), NEMA 4X 304SS (IP56) or NEMA 7 Explosion-Proof
Enclosure Mount Options: Wall-Mount (Standard) or Panel-Mount (Optional)
Power Requirements: 115/230 VAC +/-15% (w/o printer) Switchable, 50-60 Hz,
20 W Max. 8-16 VDC or 16-60 VDC Optional
Memory: Configuration/Setup Data - EEPROM, 50 year data retention, no batteries
Log Reports and Real-Time Clock - Lithium Battery-Backed RAM, 5-10 year data retention
Audible Alarm: 85 db
Display: 9-Character, Super-Bright Sunlight-Readable LED Data Display, Readable from 25’(7.6 m) Ultra-High Intensity Alarm LEDS, Visible from 75’(22.9 m)
Communication: (1) RS-232, (1) RS-485 for Pneumercator Peripherals
Optional Communication: Internal, Secured Modem, Fax/Modem, Network Interface (Ethernet and RS232/RS485 Serial Interface) or ModBus
Probe/Sensor Capacities: 2 Probe Inputs & 8 Sensor Inputs Available;
All Sensor Inputs Supervised-Wiring-Ready
Standard I/O, Non-Hazardous: 2 Relays, 1 Form C, Rated 10A@120 VAC, 6A@240 VAC, w/ 2 Opto-Isolated Inputs
Optional I/O, Non-Hazardous: (1) Expansion Slot Available
4 Relays,1 Form C, Rated 10A@120 VAC, 6A @ 240 VAC, w/4 Opto-Isolated Inputs
8 Relays,1 Form A, Rated 5A@120 VAC, 5A @ 240 VAC, w/8 Opto-Isolated Inputs
16 Relays,1 Form A, Rated 5A@120 VAC, 5A @ 240 VAC
6 or 12 Channel Programmable Analog Outputs
Full spec sheet is included with TMS2000W Downloads.
For additional technical resources, please contact tech support at (631) 293-8450 or support@pneumercator.com.
TMSComm Software
Access Real Time Data
View current tank inventory, alarms and statuses in easy-to-read tabular and/or bar graph formats. Real-time tank data includes Gross Volume, Net Volume (temperature-corrected volume), % Volume, Ullage, Product and Water Level, Volume-weighted Average Product Temperature.
Log Reports
Retrieve historical logs and generate hardcopy reports at the PC. Reports include Inventory, Delivery, Bulk Sales, Thefts, Product Ordering, Water Removal, Alarms, Events, In-Tank Leak Test Results and Leak Test History.
TMSComm AUTOPOLL
AUTOPOLL, an included application with TMSComm, provides an automated polling and data collection process selectable by site and by task that includes e-mail alerts..
Alarm Notifications
Alarms include Product and Water Setpoints, Leak/Point-Level Sensors, Contact Closure Input, Theft, In-Tank Leak and System Errors. Email alerts supported.
Ease of Programming
Perform configuration and setup programming functions either on-line to the TMS2000W or off-line to a file for later upload
